Chapter 4
Miscellaneous Structural Support Products
CHAPTER 4
MISCELLANEOUS STRUCTURAL SUPPORT PRODUCTS
4.4 CarbonArmor
®
Wall
Reinforcing System
4.4.1 Summary Description
Foundation Supportworks offers high-strength
fiber-reinforced polymer (FRP) composite
materials to reinforce concrete block and
poured concrete foundation walls. These
high-strength composite systems effectively
combine the benefits of epoxies and high-
strength carbon fibers to create materials that
are both extremely reliable and versatile. When
used in conjunction with concrete substrates,
like basement walls, significant increases to
both structural integrity and load capacity can
be achieved
(Figure 4.4.1.a)
.
The materials used in the CarbonArmor system
achieve the highest strength-per-ply available,
and are supported by the most extensive
application and durability testing in the industry.
The CarbonArmor Wall Reinforcing System is
a proven method to laterally support bowing
foundation walls. Technical specifications and
spacing recommendations are included in
Appendix 4C.

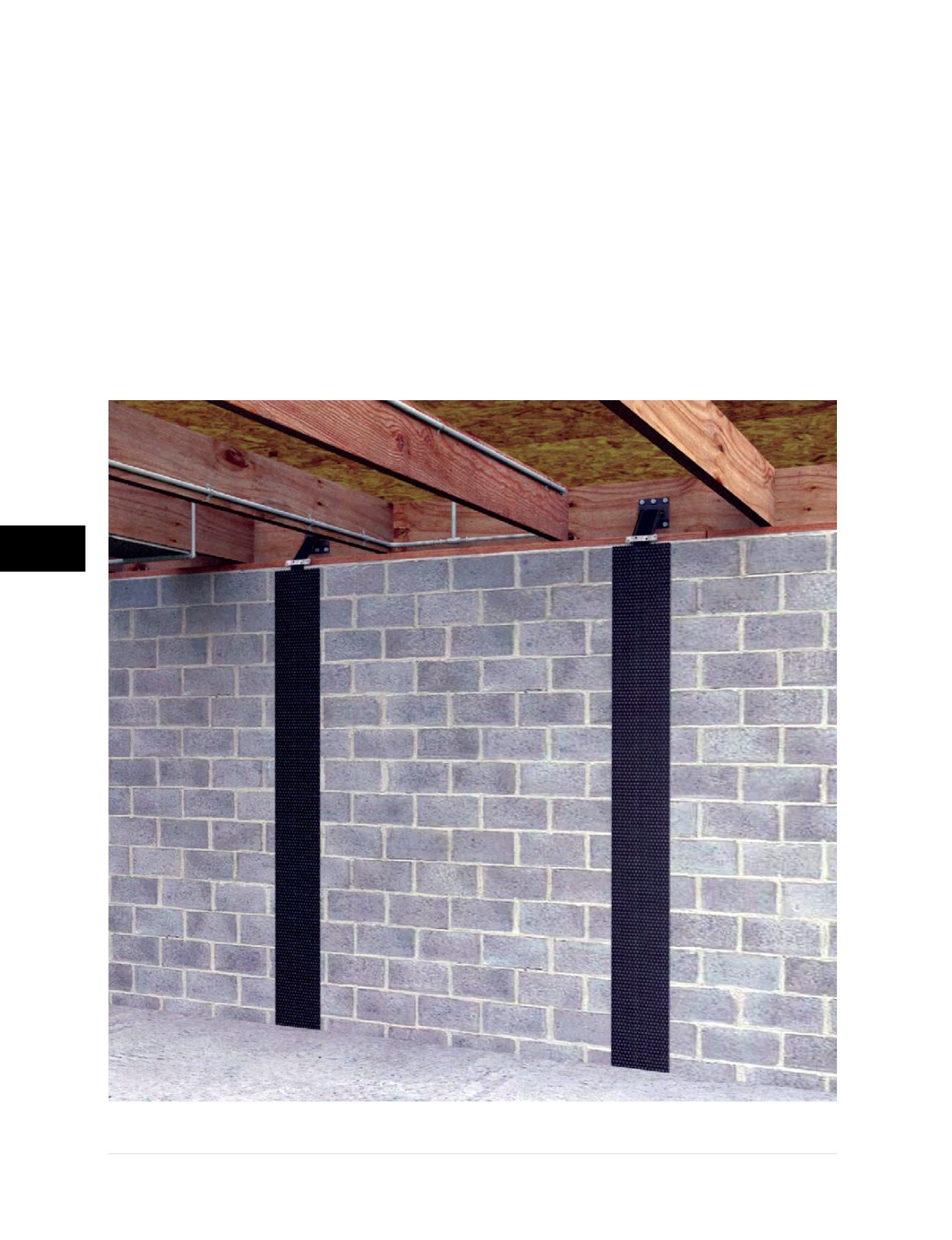

Figure 4.4.1.a
Rendering of CarbonArmor
®
installation with optional ArmorLock™ connection to rim joist
