Foundation Repair Photo Album: SmartJack Sagging Floor Repair in Torrance, CA

Sagging floors led to a crawl space support repair project at this Torrance, CA home. The existing structure relied on wooden beams and posts to support the floors above. Saber Foundation & Concrete Repair installed SmartJack steel supports and a supplemental steel beam to reinforce the floor system and address inadequate support beneath the sagging areas. This album follows the project from the existing wooden framing and support posts through installation of the new steel reinforcement. The finished photos show adjustable SmartJack columns supporting a steel beam beneath the floor joists, with the existing wood supports still visible alongside the new system. The repair highlights the importance of dependable support beneath a home’s floors. Wooden framing depends on sound materials, secure connections, and adequate support. When that support becomes insufficient, steel reinforcement can help stabilize the floor system without replacing all of the existing wood framing.

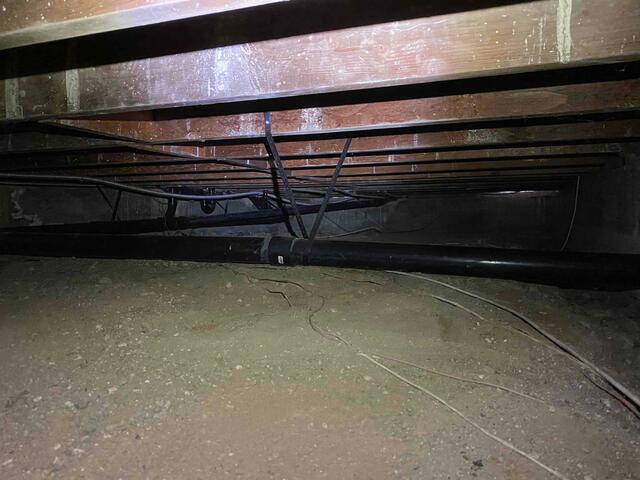

Crawl Space Floor Framing Before Repair in Torrance, CA

Existing wooden floor joists and utility lines beneath this Torrance home before SmartJack installation. Saber reinforced the crawl space floor system to address the homeowner's sagging floor concerns.

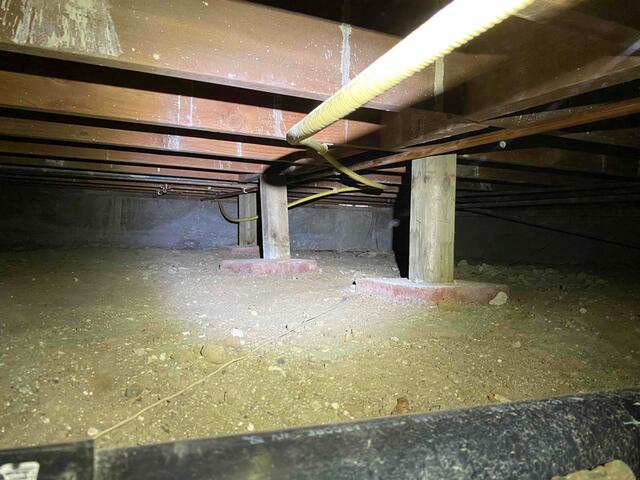

Existing Wooden Floor Supports in Torrance, CA

Wooden posts on individual concrete bases support a beam beneath the home's floor framing. This before-repair view documents the existing support arrangement ahead of Saber's installation of supplemental steel reinforcement.

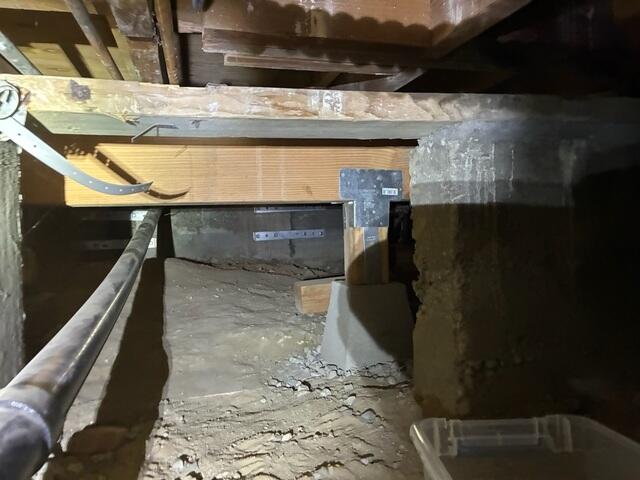

Wooden Beam and Post Connection Before Steel Reinforcement

A closer view shows an existing wooden beam, support post, and metal connector inside the Torrance crawl space. These connections are part of the support system beneath the floors that Saber reinforced during the sagging floor repair project.

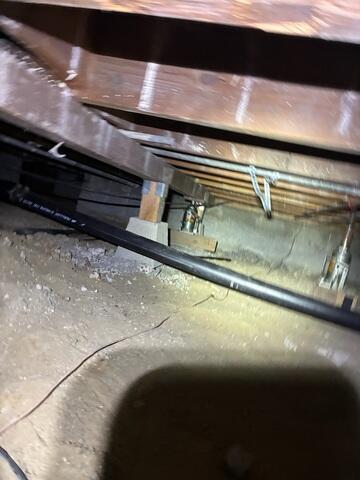

Crawl Space Beam Support Repair Preparation

Existing wooden framing, support posts, and hydraulic jacks are visible beneath the home during repair preparation. This view documents the crawl space conditions before the completed SmartJack and supplemental steel beam installation.

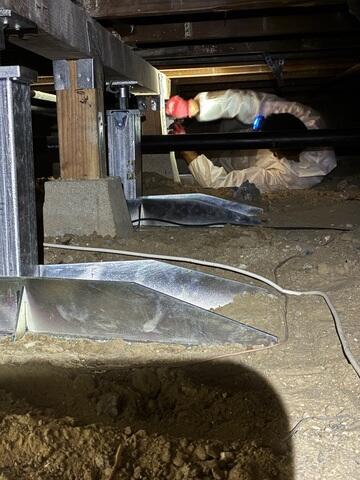

Installing SmartJack Steel Supports in Torrance, CA

A Saber crew member works beneath the home as SmartJack steel columns are positioned alongside the existing wooden supports. The adjustable columns provide additional support for the supplemental beam used in the sagging floor repair.

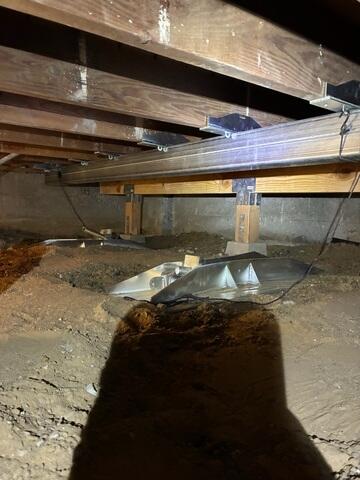

Supplemental Steel Beam Beneath the Floor Joists

A supplemental steel beam extends beneath the wooden floor joists, with steel brackets visible at the joist locations. SmartJack components are staged below as Saber builds the new support system inside the Torrance crawl space.

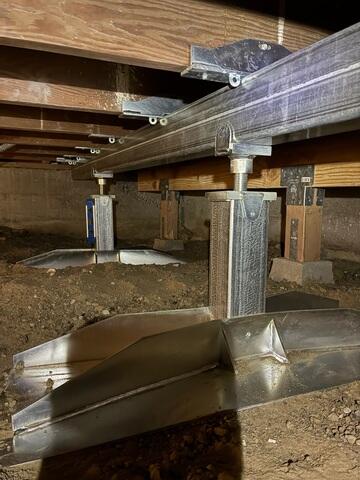

Installed SmartJack Supports Beneath the Steel Beam

Installed SmartJack columns support the supplemental steel beam beneath the home's wooden floor joists. The adjustable steel supports reinforce the floor system, while existing wooden posts remain visible behind the new installation.

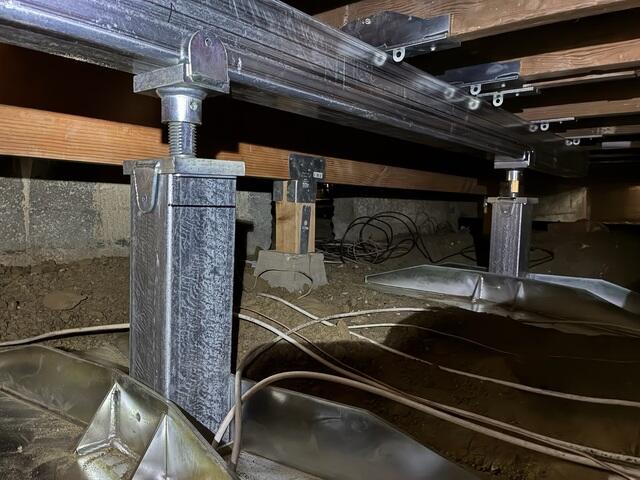

Completed SmartJack Floor Support Installation in Torrance

This finished view shows the SmartJack columns, adjustable threaded connections, and supplemental steel beam installed beneath the floor framing. Saber added the steel support system to address sagging floors and strengthen support beneath this Torrance home.
